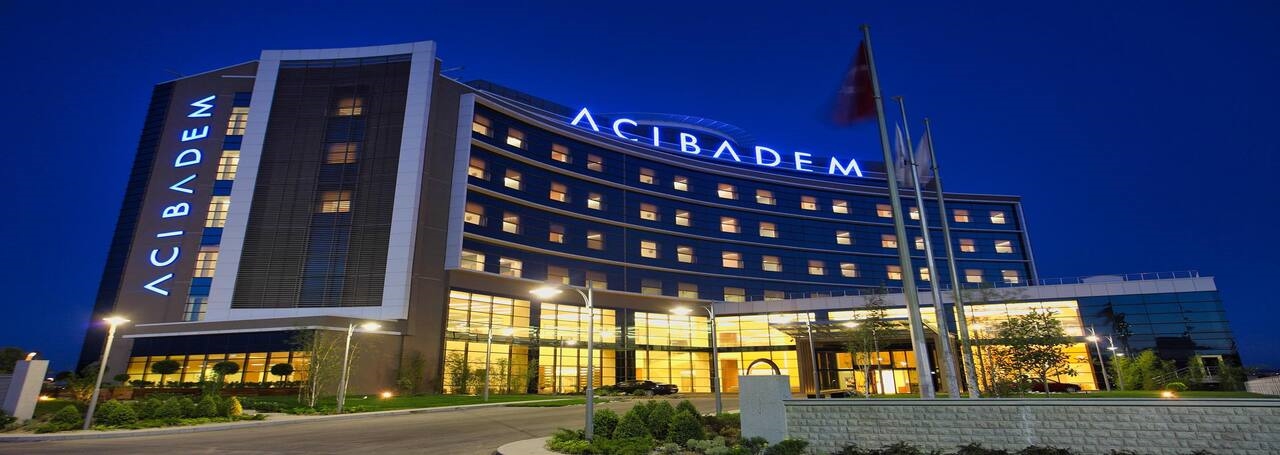

Acıbadem Eskişehir Hospital is built on a closed area of 21,200 m² and has 5 operating rooms, 34 intensive care beds including a neonatal intensive care unit, 2 delivery rooms and 1 infant care room. The hospital has a capacity of 133 beds and contains a smart building system that can be controlled from 1,000 points.
EEC Entegre Bina Kontrol Sistemleri installed Edwards EST3 fire detection and alarm, UTC CCTV and Dukane Nurse Call Systems for Acıbadem Eskişehir Hospital. The engineering, material procurement and commissioning services of the systems were completed by EEC within 8 months. EEC also carries out the necessary maintenance work for the systems.
The Edwards fire detection and alarm system that we installed at Acıbadem Eskişehir Hospital is monitored through a main control panel and repeater panels at all information desks. Different types of devices were chosen in consideration of the environmental conditions in accordance with the special requirements of the hospital environment. Information flow is provided through smoke, combination, heat detectors and fire alarm buttons. The system uses gas and carbon monoxide detectors, and water leakage detectors. The doors leading to the fire escape are also monitored by the fire alarm system. Different fire scenarios are implemented in areas that require special precision such as the intensive care unit and operating rooms. The system is also monitored and controlled through a graphic monitoring software specific to the fire alarm system.
Much like many other Acıbadem Hospitals, a nurse call system has been installed at Acıbadem Eskişehir Hospital. The system provides better service to patients and their relatives, it can also measure the efficiency of staff and it is important in terms of the communication between patients and nurses in emergencies.
Calls can be made through the nurse call system from the patient control units located in rooms to the nurse desks for the nurses to intervene. Emergency pull cords installed in the bathrooms and toilets are monitored by the patient bedside control unit and addressing units.
Using the primary monitoring computer installed in the head nurse’s room, you can obtain and store system reports according to various criteria such as when the call was received from which point, and how long it took for the staff to intervene. Thereby obtaining the the concrete performance data required for the hospital management to maximize patient satisfaction with a single click.
The Nurse Call Console and connection units are produced and certified in accordance with the medical and electrical compliance standard “UL 1069”. The “Code Blue” system implemented in certain areas is also one of the accreditation requirements requested by JCI. When there is a code blue in areas such as the intensive care unit, KVC (Cardiovascular Surgery), blood collection and polyclinics, a call can be made through the nurse call system and a code blue scenario can be ensured throughout the hospital.
It is quite crucial for the measures taken towards the safety of life and property of hospital staff, patients and their relatives to be supported by electronic systems as well. This requirement has been met with the UTC CCTV System at Acıbadem Eskişehir Hospital.
The hospital is monitored with high-resolution internal type dome cameras, fixed cameras and external cameras with night/day vision features. Specifically the most critical points are monitored 24/7. All cameras connected to the system are constantly monitored by security officers, and the images are recorded on digital recording devices. Moreover, the desired camera images are switched to the relevant monitor automatically or manually using the matrix switcher connected to the system.
